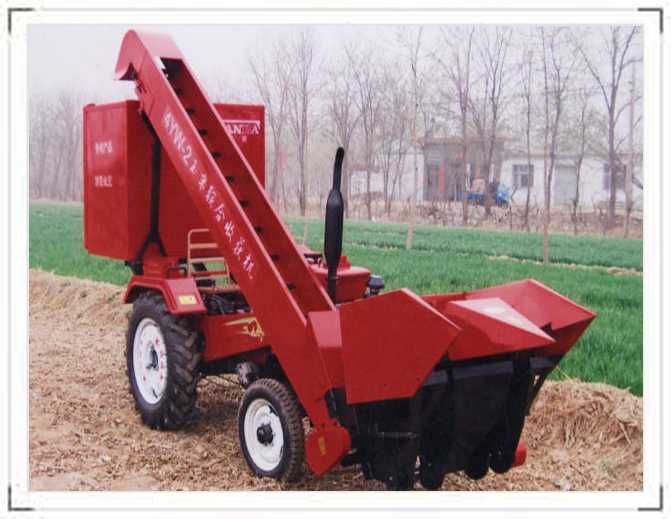

Small Corn Harvester

Small Corn Harvester




Usage:
This small-type corn harvester can both harvest corncob and cut up corn plants. 4YW-2 corn harvester researched
by HWD crusher company is of high quality and labor saving.


Advantages:
Reaping corn and crushing corn stalk for the purpose of returning the stalk to the soil.
The machine is energy saving, only need 18-20 horsepower to operate.
The machine is multi-use, flexible. It can work with 20 horsepower small tractor which also can be used alone.
High efficiency, 3-5 mu per hour


Parameter:
Item
Performance
Parameter
Item
Performance
Parameter
Model
4YB-2
Kernel Loss Rate
≤2%
Type
Suspension type
Kernel Break Rate
≤1%
Mating
Power
18-25 hp
Stalk Cut Length
Qualification
≥90%
Harvesting
Capacity
2 lines
Stalk Returning to Field Type
Rotary cut
Working
Range
Line width:50-80 cm
Corncob Container Volume
0.96 m³
Working
Performance
3-5 mu per hour
Overall Dimension
(L×W×H) mm
4500×1300×2650
Corncob
Loss Rate
≤3%
Overall Weight
600 kg
