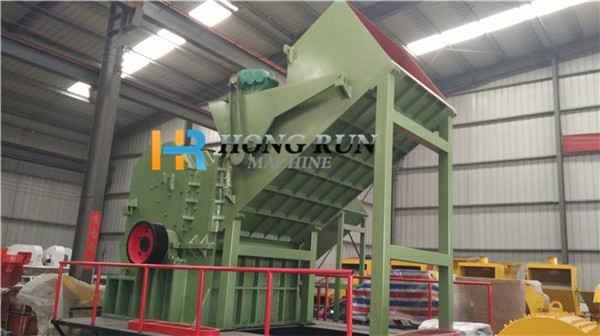

Metal Crusher
Introduction
The metal crusher includes the machines are Host motor, blower, connection pipe, dust collector, feed conveyor and discharging iron aluminum separator, etc. It is mainly applied to the large-scale reclamation depot and used to break the cans into ideal pellets, such as drink can, beer can, so that the transport cost can be reduced. The users can adopt different allocations according to the materials species, scale, and the requirements of the finished goods.
The metal crusher includes the machines are Host motor, blower, connection pipe, dust collector, feed conveyor and discharging iron aluminum separator, etc. It is mainly applied to the large-scale reclamation depot and used to break the cans into ideal pellets, such as drink can, beer can, so that the transport cost can be reduced. The users can adopt different allocations according to the materials species, scale, and the requirements of the finished goods.
Application and Working Principles
The following materials can be crushed by the metal crusher, such as scrap metal, cans, caging watts, paint bucket, motor shell, motorcycle and bicycle rack shelf, etc
Crushing principle: Pressure rolling, shearing force, impact and grinding are the four kinds of pressure on the solid in the crushing pocess. Pressure rolling is maily used in the hard and large materials; shearing force is maily used in the ductile material crushing; Impact mainly used in crushing the brittle materials and grinding mainly used in crushing the small and fine materials.
Technical Parameters
|
Parameter(Type)
|
Power (kw)
|
Capacity(Kg/h)
|
Dimension (m)
|
Floor Area(Sq.m)
|
|
400
|
18.5
|
300-500
|
1.85*1.2*0.92
|
5
|
|
600
|
30
|
500-700
|
2.3*1.6*1.25
|
7
|
|
800
|
45
|
700-1000
|
2.56*2.1*2
|
9
|
|
1000
|
55
|
1000-2000
|
2.8*2.5*2.4
|
13
|
|
1200
|
75
|
2000-3000
|
3*2.8*2.9
|
20
|
|
1300
|
90
|
3000-5000
|
2.8*3.5*3
|
25
|
|
1600
|
132
|
4000-6000
|
3.3*3.5*3
|
30
|
