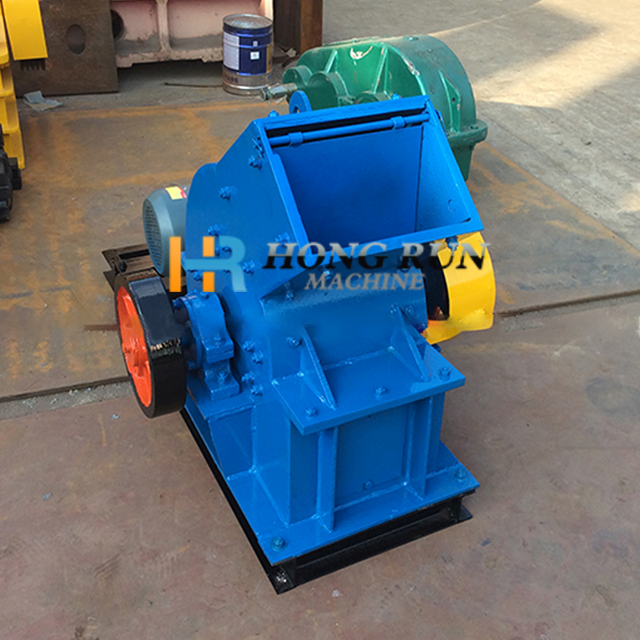

Hammer Crusher
Introduction:
The hammer crusher can crush many kinds of medium hard and less abradability materials with compression
strength not more than 100Mpa, moisture content not more than 15%.
Materials like quartz, coal, salt, chalky, gypsum, brick, tile, limestone etc. can be crushed in this machine.
It can also be used to crush hard wood, hard papers, asbestos cement residue, recycled asbestos fiber etc.
The materials are impacted and grinded by the hammer in the tank. Then the sieve plate screen the particles
which are suitable for the emission of sieve pore.
Technical parameter:
Operations:
It is not complicated. Start the machine and put materials(stone, ore) into the feed port.
Starting voltage: 380V.
The hammer crusher can crush many kinds of medium hard and less abradability materials with compression
strength not more than 100Mpa, moisture content not more than 15%.
Materials like quartz, coal, salt, chalky, gypsum, brick, tile, limestone etc. can be crushed in this machine.
It can also be used to crush hard wood, hard papers, asbestos cement residue, recycled asbestos fiber etc.
The materials are impacted and grinded by the hammer in the tank. Then the sieve plate screen the particles
which are suitable for the emission of sieve pore.
Technical parameter:
|
型号 （Type) |
给料粒度 （mm） |
出料粒度 （mm） |
产量 (t/h) |
电动机功率 (KW) |
重量 (KG) |
| Pc400*300 | ≤100 | ≤10 | 5-10 | 7.5 | 800 |
| Pc600*400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| Pc800*600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| Pc1000*800 | ≤200 | ≤13 | 20-40 | 115 | 7900 |
| Pc1000*1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| Pc13000*1200 | ≤2500 | ≤19 | 80-200 | 240 | 13600 |
Operations:
It is not complicated. Start the machine and put materials(stone, ore) into the feed port.
Starting voltage: 380V.
