Grinding machine


       The grinding machine is with a simple structure, easy installation and maintenance, wide  range of using and so on. Applicable to grain crushing,crop crushing, Chinese herbal  medicine crushing, spices crushed, feed crushed. It is a small, multi-purpose, new  crusher, not only can crush corn, sorghum, rice, wheat, soybeans and other food, but also  crush the water stains soybeans, pepper, herbs, Sweet potato, corn, orange, weeds and  other feed, but also can crush the gypsum, lead powder, powder, rare earth, chemical,  pottery, coal and other low-hardness minerals. Suitable for the majority of urban and  rural units and household food processing,feed processing and other professional  processing use.

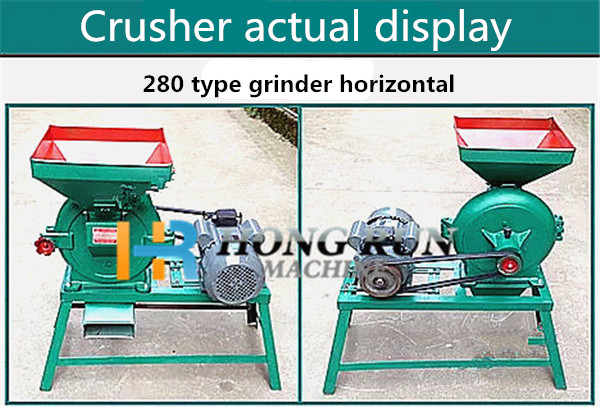

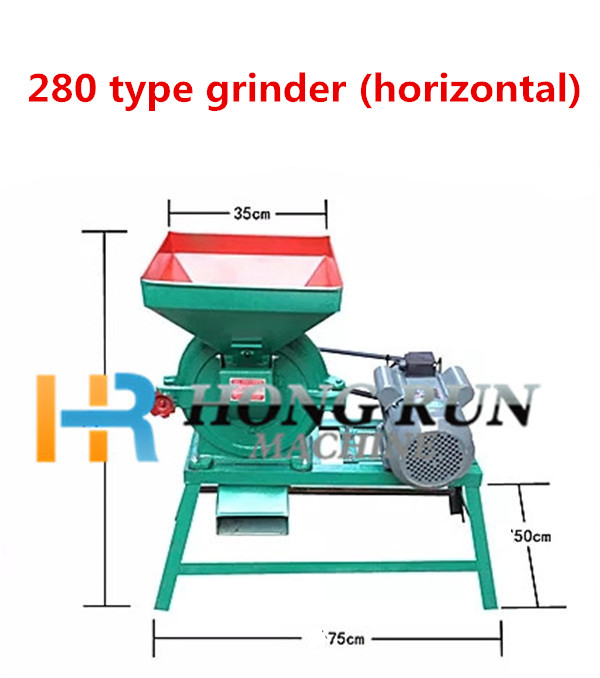

Product Name: 280 type grinder (horizontal)

Rated voltage: 220v / 380v

Motor power: 3kw-4.8kw

Spindle speed: 4800r / Min

Machine cavity diameter: 28cm

Production efficiency: 200-800 kg / h

Machine weight: about 52KG (stand-alone weight)

Dimensions: 750 * 500 * 920mm

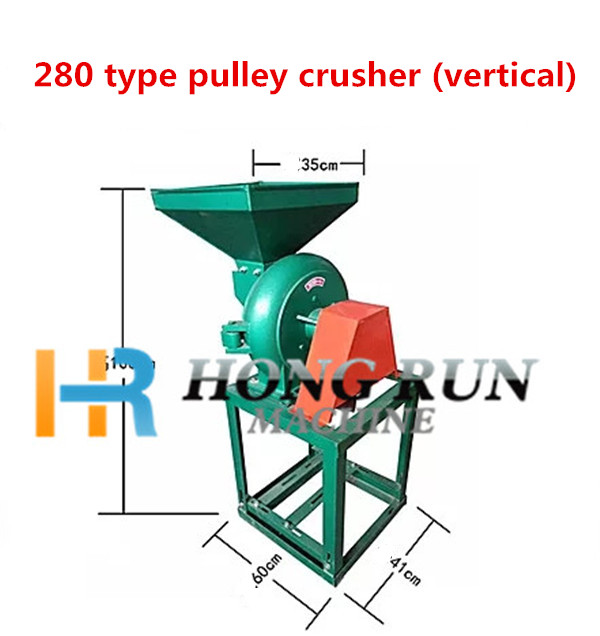

Product Name: 280 type pulley crusher (vertical)
Rated voltage: 220v / 380v
Motor power: 3kw-4.8kw
Spindle speed: 4800r / Min
Machine cavity diameter: 28cm
Production efficiency: 200-800 kg / h
Machine weight: about 52kg (stand-alone weight)
Dimensions: 410 * 600 * 1000mm

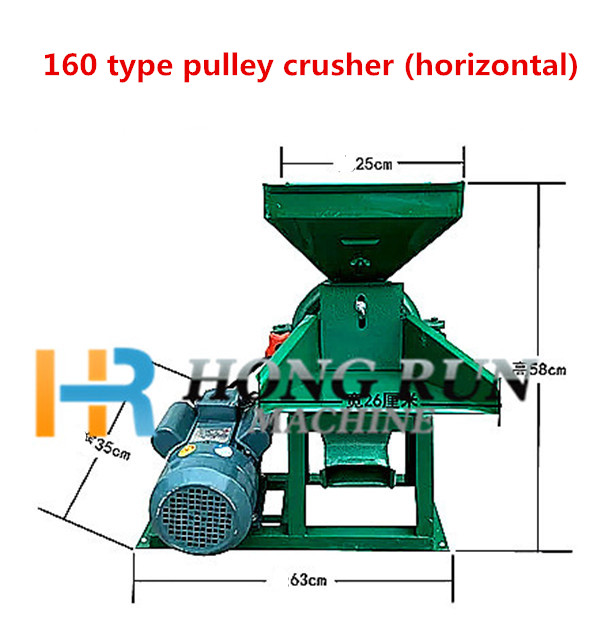

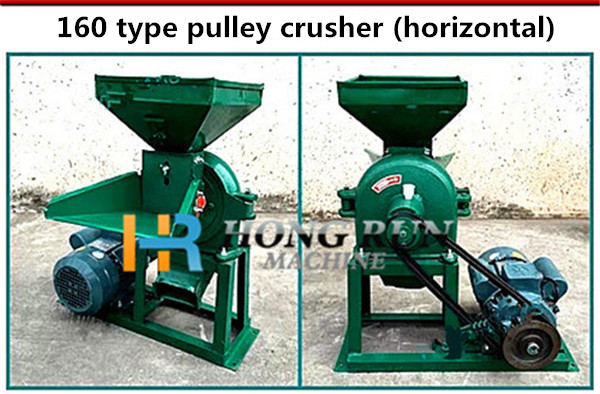

Product Name: 160 type pulley crusher (horizontal)
The amount of voltage: 220v
Motor power: 2.2kw
Spindle speed: 4800r / Min
Machine cavity diameter: 19cm
Production efficiency: 50-300 kg / h
Machine weight: about 21kg (stand-alone weight)
Dimensions: 630mm * 350mm * 580mm
